Visual Aids

If you're having trouble viewing the schematics go to TOOLS/INTERNET OPTIONS/ADVANCED/MULTIMEDIA in IE and uncheck Enable automatic image resizing. This could be a problem if you are using Internet Explorer 6.0 and above.

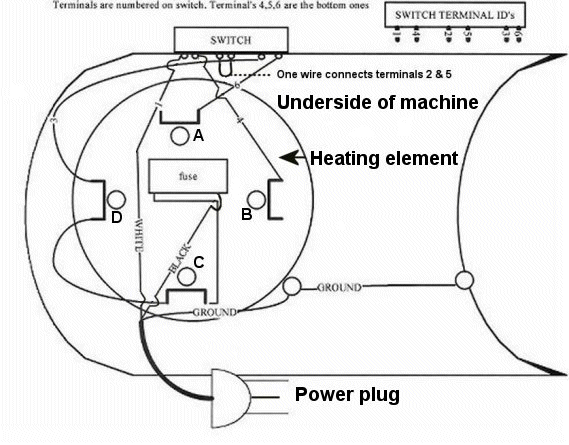

This is a rough schematic of the electrical circuit of my machine. Mfg. date Feb. 1996. 120 volt model. The low heat circuit are terminals A and C. The high heat circuit are terminals B and D.

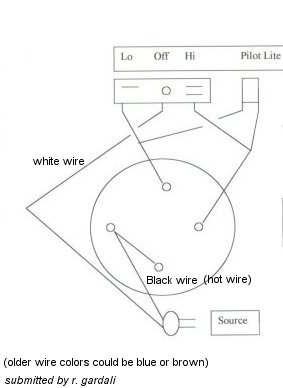

This is a rough wiring schematic of an older Pavoni with a three position switch (Lo/Off/HI) and pilot light. If you don't have a light, disregard the wires going to the light.

This is a rough wiring schematic of the newest Europiccola. Mfg. date 2000. 120 volt model.

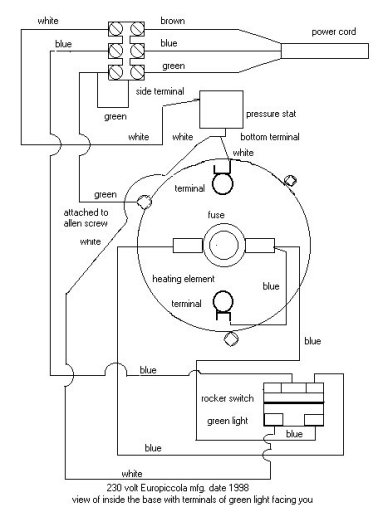

This is a rough wiring schematic of a 230 volt Europiccola. Mfg. date March 1998.

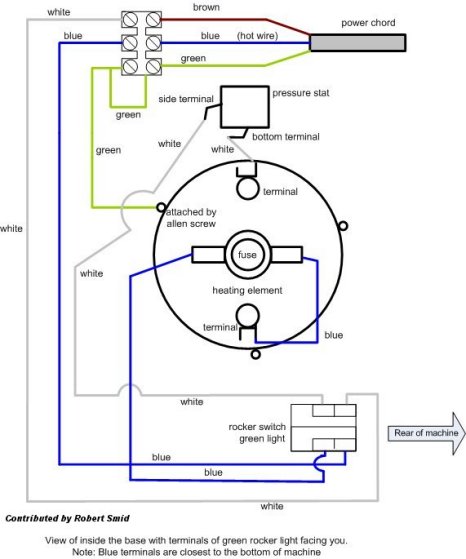

This a a rough wiring schematic of a 230 volt European Professional Mfg. date April 2001

Shown are the retaining ring pliers, small screwdriver and ViperLube&reg.

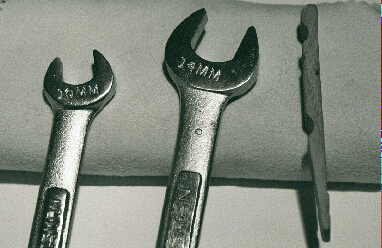

10MM and 14MM wrenches and a wooden clothes pin.

Adjustable wrench, ViperLube®, Multitester, large philips screwdriver, flat tip screwdriver, and needle nose pliers
